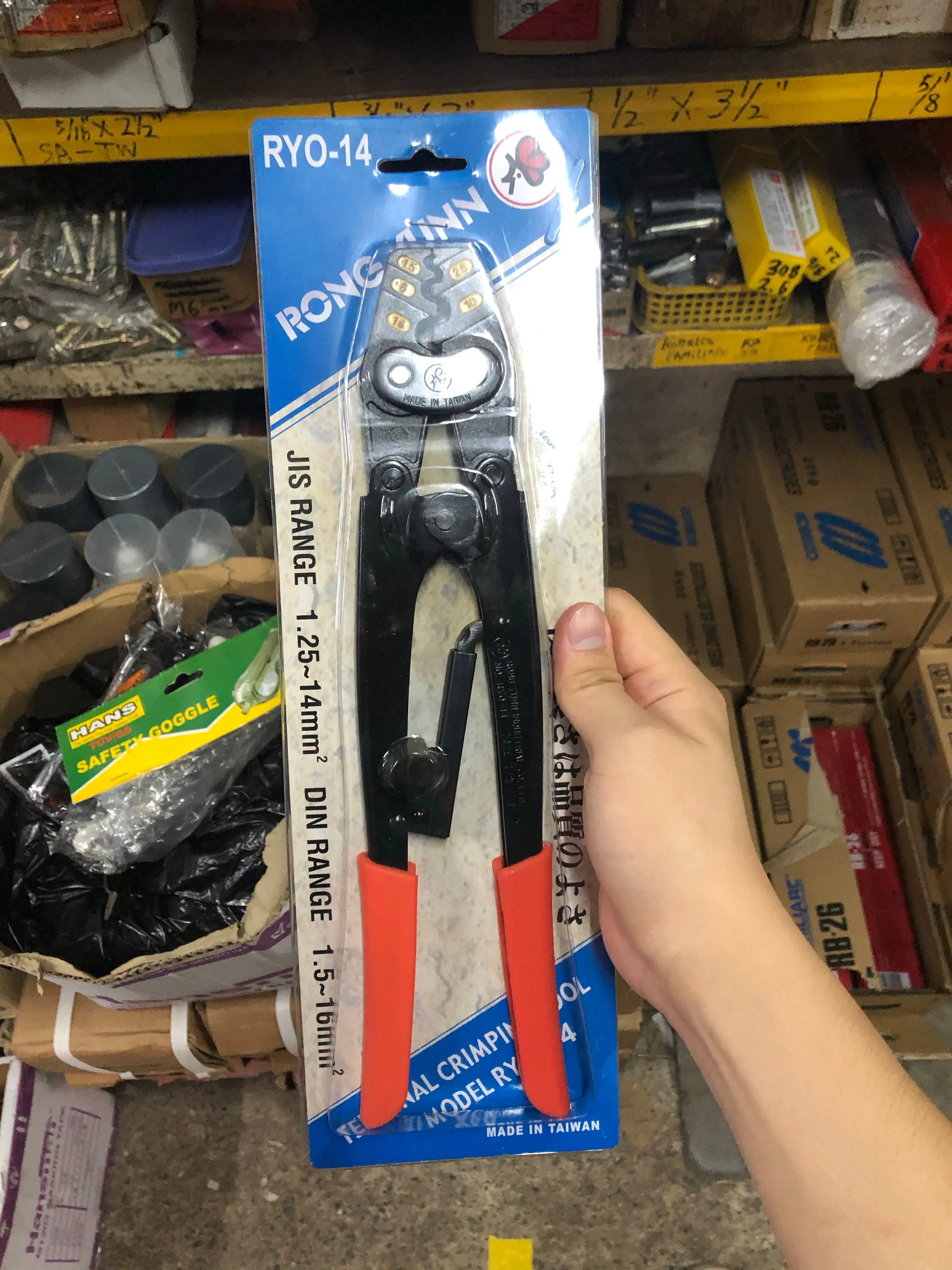

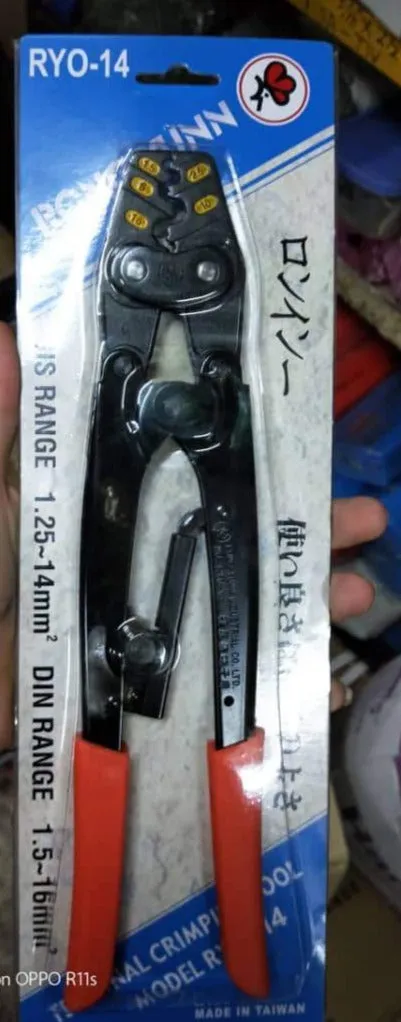

Features :

• Non insulated terminal range: 1.25, 2, 3.5, 5.5, 8, 14 mm²
• Copper tube terminal range: 1.5, 2.5, 4, 6, 10, 16 mm²
• Length: 298 mm
• Weight: 0.52 kg

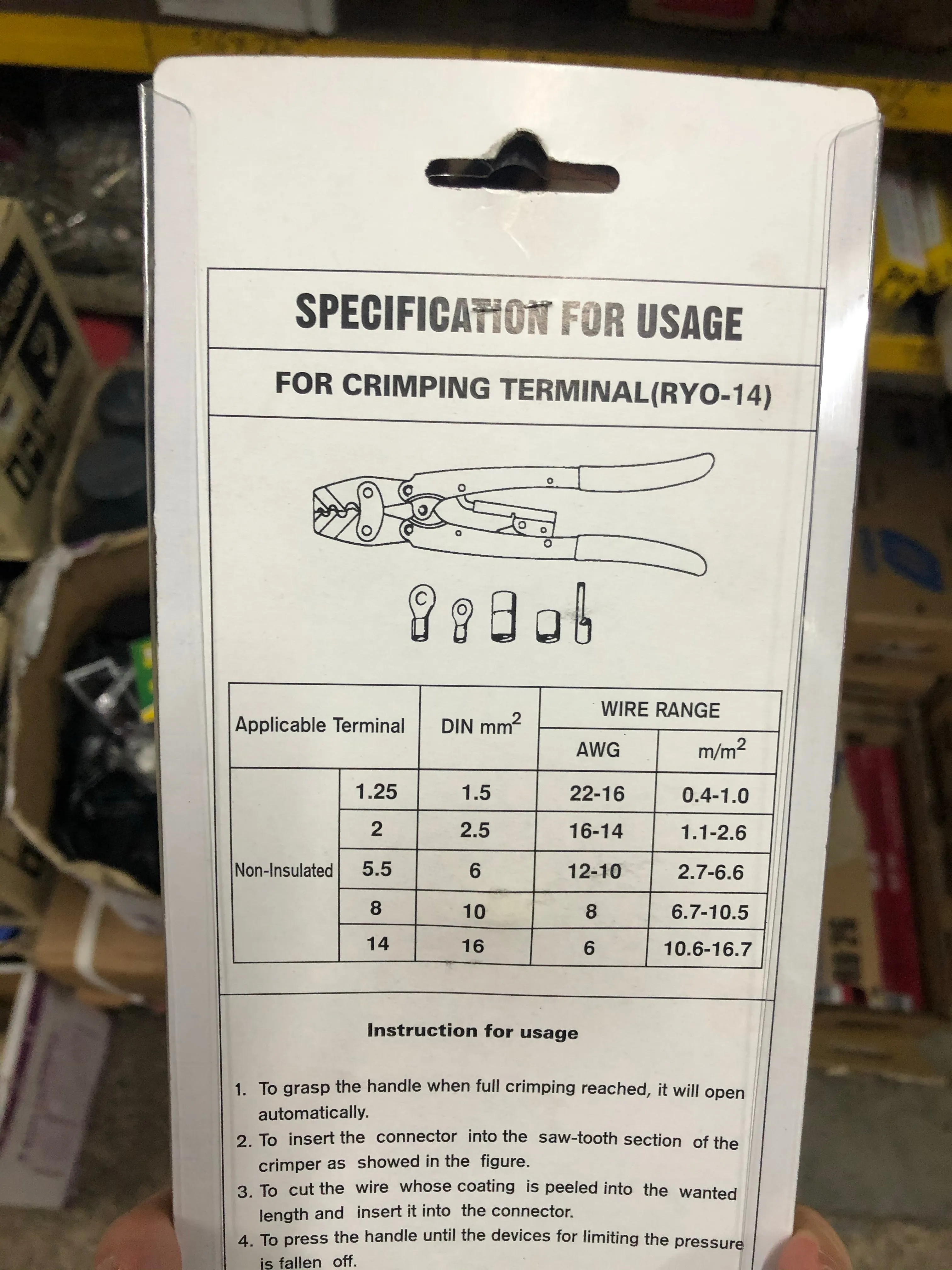

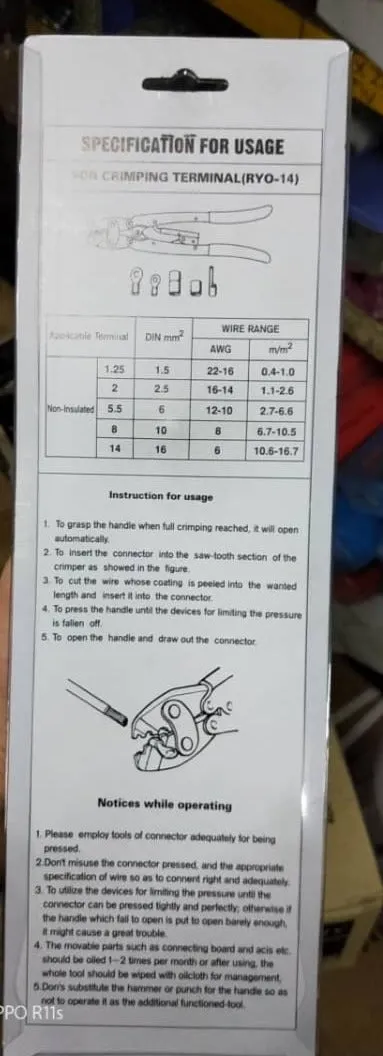

Instruction for usage:

• To grasp the handle when full crimping reached , it will open automatically.
• To insert the connector into the saw-tooth section of the crimper as showed in the figure.
• To cut the wire whose coating is peeled into the wanted length and insert it into the connector .
• To press the handle untill the devices for limiting the pressure is fallen off.
• To open the handle and draw out the connector

Notice while operating:

• Please employ tools os connector adequately for being pressed.
• Don't misuse the connector pressed, and the appopriate specification of wire so as to connect right and adequately.
• To utlilze the devices for limiting the pressure untill the connector can be pressed tightly and perfectly ; otherwise if the handle which fail to open is put to open barely enough,it might cause a great trouble.
• The movable parts such as connecting borad and axis etc.
  should be oiled 1-2 times per month or after using , the whole tool should be wiped with oilcloth for management.
• Don't substitute the hammer or punch for the handle so as not to operate it as the additional functioned-tool.
